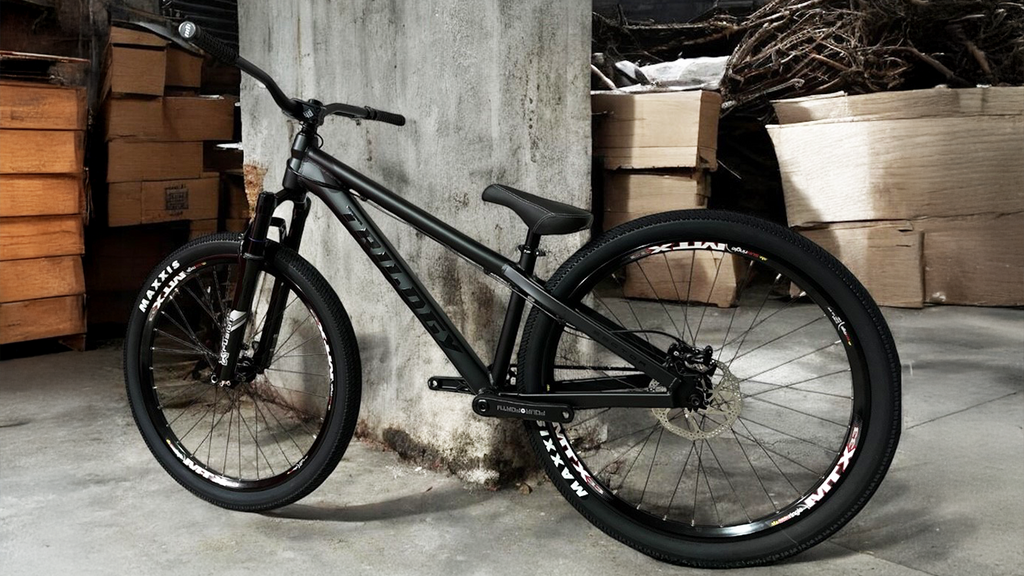

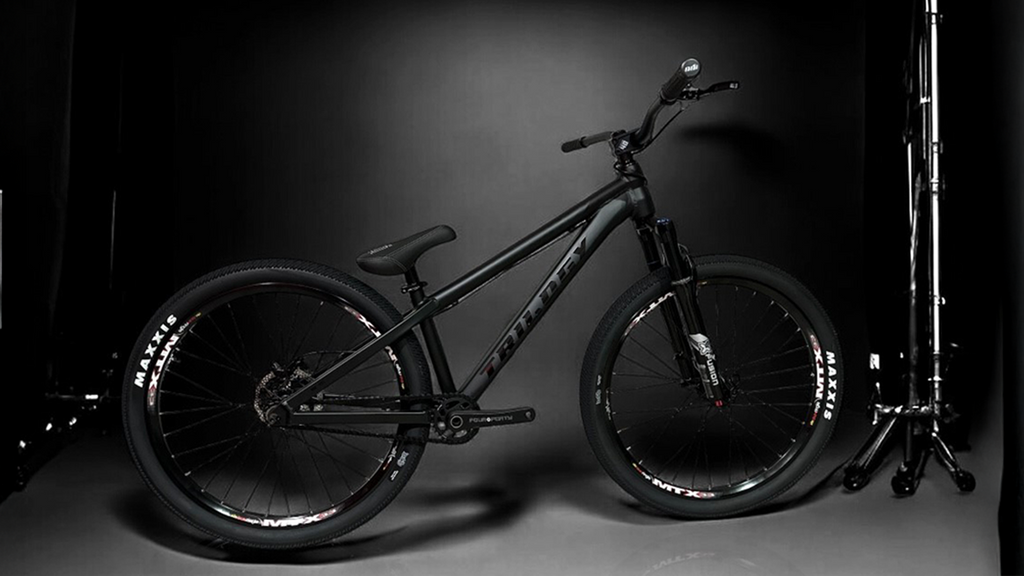

SECTOR
Designed for riders that crave adrenaline on the park, street or track. With its robust frame and responsive handling, the Sector is built to tackle jumps, drops and tricks with ease. Featuring quality proven components used by advanced riders.
Pickup currently not available
specifications
Frame
Alloy chassis, euro 73mm BB, 10x135mm rear dropouts, tapered head tube
Seat Post diameter
Alloy 30.9mm
SUSPENSION
X Fusion RC DJ air spring fork with 100mm travel, tapered steer tube, adjustable rebound and compression adjustment
Stem
Four40- 0 rise, 35mm long, 31.8 clamp
Handlebars
Four40- 7050 T6 aluminum, 38mm rise, 31.8 clamp, 800 width, 6 degree rise and 9-degree back sweep
Grips
ODI Vans Cult double lock on grips
Headset
FSA NO.57 Orbits sealed bearing 1.125”-1.5” tapered
brake
Zoom 4 piston rear / 160mm rotor
Front sprocket
28T sprocket
Rear cog
12T forged chromoly, Compatible with Shimano/SRAM
Chain
KMC half link chain / black
Crankset
Four40- hollow through axle 24mm, 6061 aluminum MTB 165mm cranks
Tires
Maxxis DTH 26x2.35
Rims
Sun Ringle MTX33 rims
Spokes
Steel spokes
Hubs
Four40 hubs 120, points of engagement
Inner tubes
Standard Presta valves
Weight
26.5 pounds
Saddle
Four40 seat
Seat post
Zoom seat post / 150mm
Seat post clamp
34.9mm
.

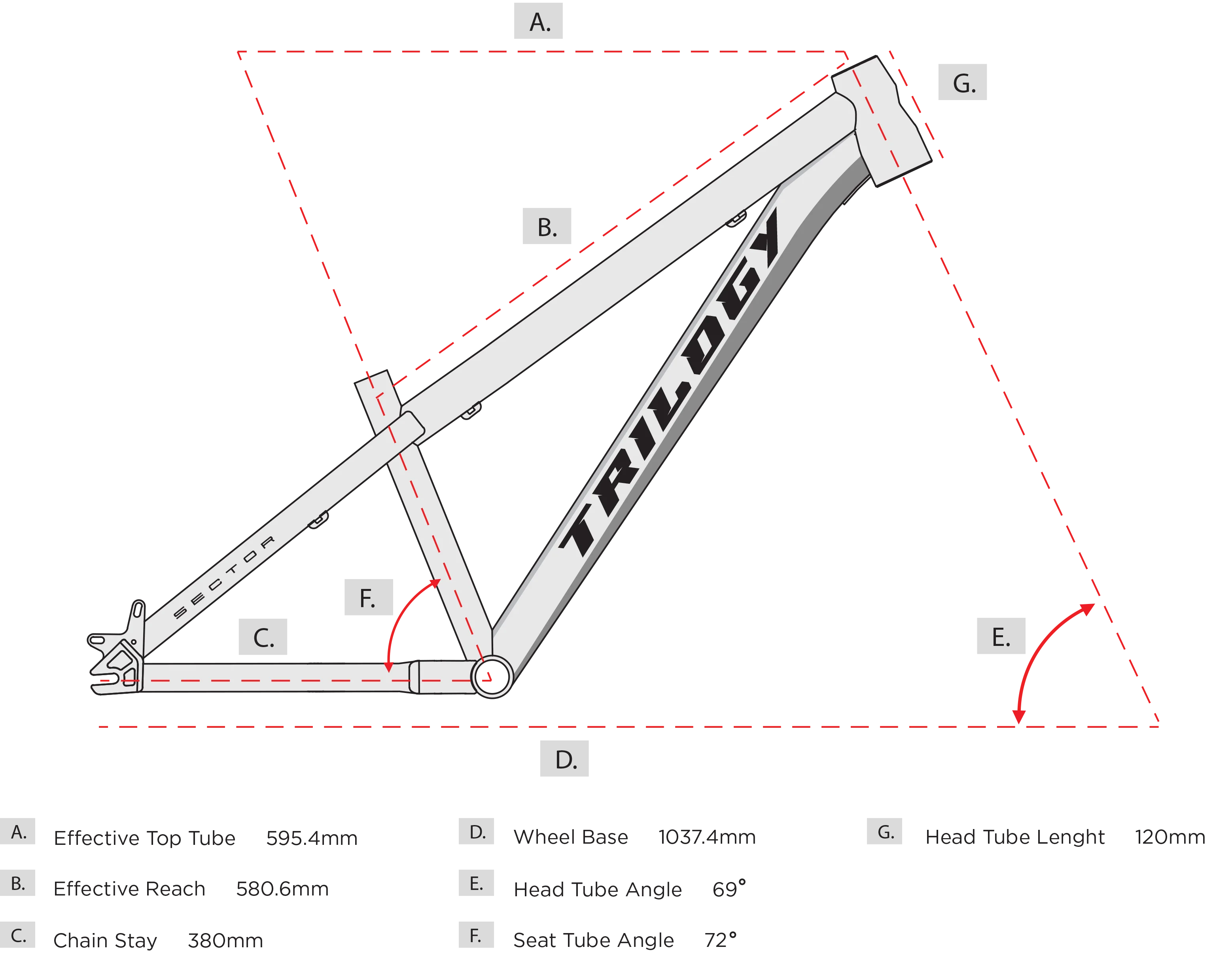

geometry
